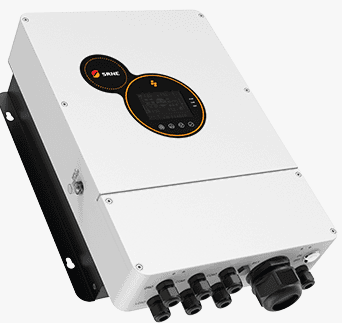

SRNE HESP4860S100-H 6kW Single-Phase Hybrid Solar Inverter

The SRNE HESP4860S100-H is a 6kW single-phase hybrid solar storage inverter built for residential and small commercial solar-plus-storage systems. It combines PV input, battery charging, grid interaction and generator support in a single IP65-rated unit suitable for outdoor installation. Two independent MPPT trackers accept up to 4,500W each with a 120-450Vdc operating window, delivering 99.9% tracking efficiency and 97.5% peak conversion efficiency. The inverter works with 48V lithium, lead-acid or user-defined battery banks, charging at up to 60A from grid or generator and 100A in hybrid mode. A dedicated generator port and AC-coupling support make it well suited to areas with unstable grid supply, while the built-in time-slot function allows peak-valley scheduling to cut energy costs. Up to 6 units can be paralleled, and configurations of more than 3 units can produce a three-phase output. Full protection is included as standard: anti-islanding, PV reverse polarity, residual current and insulation resistance monitoring, output short-circuit and over-current protection, and AC/DC surge protection. Backed by a 5-year warranty and certified to EN50549-1, G99, NRS-097, VDE-AR-N 4105, CEI 0-21, IEC 62109-1/-2 and more.
